Hang Tag String Machine
One-stop Plastic Injction Solution Supplier since 2002
Language
One-stop Plastic Injction Solution Supplier since 2002
After years of development, we have introduced and upgraded the technologies so as to make the manufacturing process more efficient.As more and more product advantages have been gradually discovered, Best Clothing Label String Machine, Clothing Tag String Machine HM-35-CT enjoys a wider range of application uses and now can be found in the field(s) of Injection Molding Machine.
With experienced, professional, and well-educated employees,Hommar Industry Co., Ltd. is efficient and excellent in developing products, one of which is Best Clothing Label String Machine, Clothing Tag String Machine HM-35-CT. It has some unique features. Injection Molding Machine has won high attention and praise from the industry and market. In the future, Hommar Industry Co., Ltd. will always adhere to the business philosophy of "people-oriented, innovative development", based on excellent quality, driven by technological innovation, committed to high-quality products, high-level technology and high-efficiency operations, and promotes the company The economy develops soundly and rapidly.
| Plastic Processed: | PP, PC | Condition: | New |
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 40 |
| Mold Height(mm): | 180 - 380 mm | Ejector Number: | 1 |
| Ejector Stroke(mm): | 45 mm | Ejector Force(kN): | 12 kN |
| Theoretical Shot Volume(cm³): | 86 cm³ | Injection Rate (g/s): | 40 g/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 67 g |
| Screw Speed (rpm): | 1 - 180 rpm | Screw diameter (mm): | 28 mm |
| Distance between Tie Bars: | 370*210mm | Weight (KG): | 1500 |
| Type: | Tube Head Injection | Place of Origin: | Guangdong, China |
| Open Stroke(mm): | 250 mm | Model Number: | HM-35-CT abc |
| Brand Name: | HOMMAR | Power (kW): | 9.1 kW |
| Warranty: | 2 years | Key Selling Points: | High Productivity |
| Applicable Industries: | Manufacturing Plant, Clothing Label Machine | Showroom Location: | None |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1.5 years |
| Core Components: | Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw | Plastic Type: | Thermoplastic |
| Automatic: | Yes | Keyword: | Clothing Label Machine |
| Dimension of Machine: | 1.75*1.2*2.9M | Packing Dimension: | 1.9*1.3*2.0M+0.7*0.5*1.65M |
| Molds: | 1 set | Oil Tank Capacity: | 140L |
| Cooling water: | 500-600L/hr | Injection rate: | 78-103 cc/s |
| Screw Diameter: | 30mm | After-sales Service Provided: | Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | None |
| Certification: | ISO 9001:2008 |

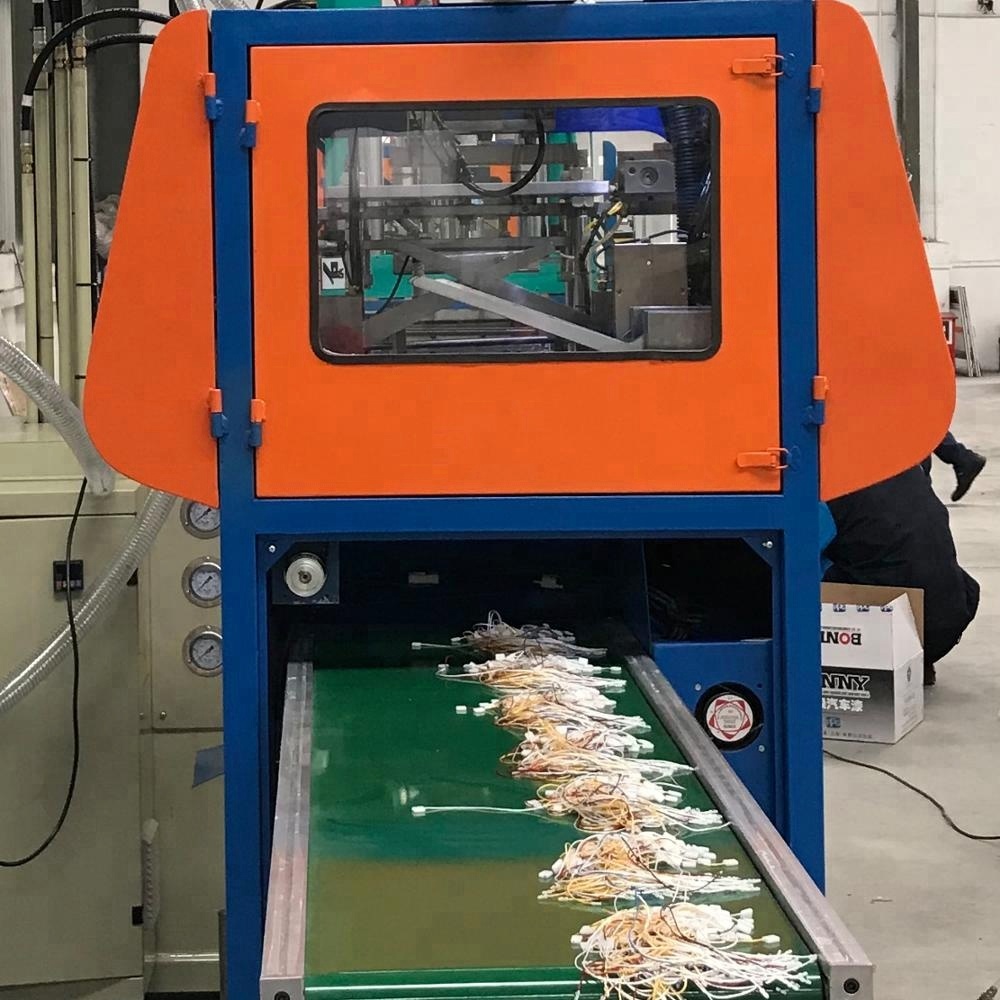

Best Clothing Label String Machine, Clothing Tag String Machine HM-35-CT
Q&A
How long time is a circle?
It is usually 9-12 seconds. It can be up to 7.5 seconds a circle.
What is production capacity per hour
For single lock tag, it is usually 6000-7000pcs per hour
For double lock tag, it is usually 3000-3500pcs per hour
How long the tag string can be?
For single lock tag, it can be 14cm to 38cm
For double locks tag, it can be 25cm to 35cm
How long the tag can be
For single lock tag, it can be 4 mm to 20mm
For double locks tag, it can be 10mm to 40mm
What wideth the tag can be?
For single lock tag,20 cavities, it can be 4 mm to 10 mm
For double locks tag, 10 cavities,it can be 5 mm to 19 mm
How many molds should I need?
For new user, we suggest you buy one mold for single lock tag and one mold for double locks tag.
If you have order with satin, wax cotton,bigger size cord/thread,or bigger size in wideth or length in above, then you need a new mold for it.
For different pattern,logo, you only need more logo molds.
For more information , please see the mold instruction behind.

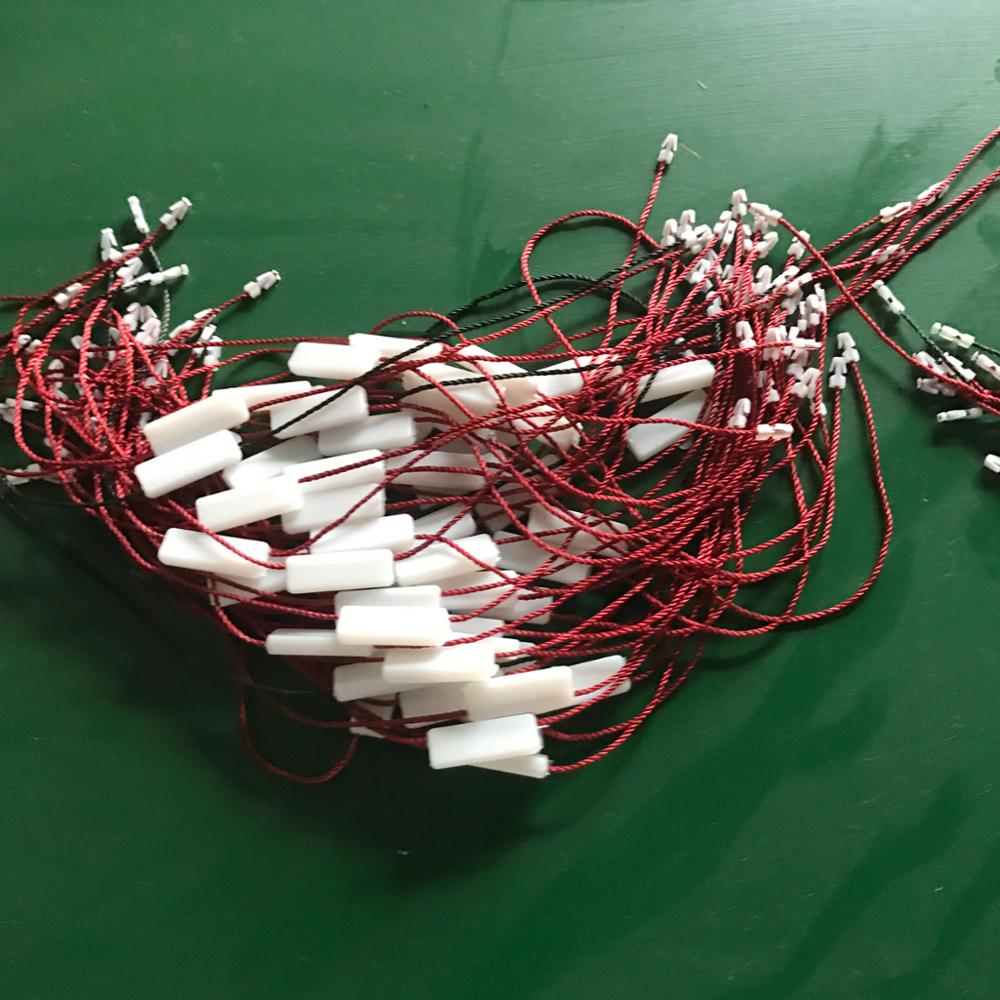

What material is used for producing seal tag?
For single lock tag, the raw material is Polypropylene. For double locks tag, the raw material is Polystyrene
What is different from your machine to competitor's machine?
On injection machine
1.This machine's platen is bigger and it can support bigger mold.The logo mold can reach to 210mm wideth.
2.This machine is equipped with better components and materials.Its life span is longer
3.This machine is equipped with tiebar and it works better.
4.This machine is CE certificated and is more popular in EU and Americas, specially in Turkey and Brazil.
On Robot
1. Our machine are original designed and original developed,better design details on the machine.
2.Our machine is optimized every year. So far , the machine is the 7th generation. The competitors' was copied from our the 2nd generation one.Theirs are still same.
3.All materials are better than competitors'. For example, servo motor, steel, powder coating,clip,cylinder etc.

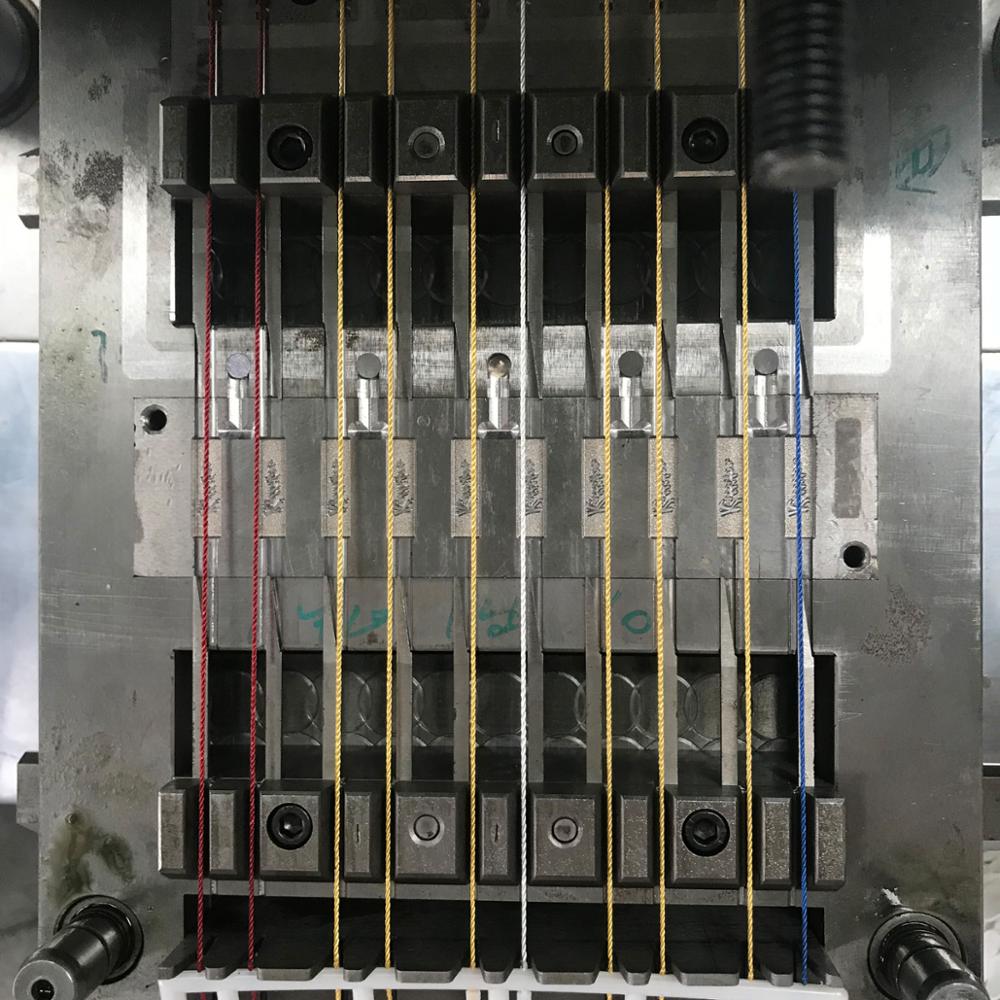

On mold
1. Better material, the core is made with S136. It is more anti-wear.
2.Better design, the pin are with semi-circle radian
What is different from this machine to others?
1.This machine's platen is bigger and it can support bigger mold.The logo mold can reach to 210mm wideth.
2.This machine is equipped with better components and materials.Its life span is longer
3.This machine is equipped with tiebar and it works better.
4.This machine is CE certificated and is more popular in EU and Americas, specially in Turkey and Brazil.
Can you provide raw materials to us,such as cord/thread, hot foil , plastic raw material?
Yes, we can. We cooperate with many such factories with competitive price.Many customers buy those through us.
What language is availble in PLC?
There are Chinese, English, Portuguese,Spanish, France,Germany, Russian,Turkish,Arabic,Japanese and Korean
What else machine should I buy?
You can decide what else machine you should buy according to the below.
The neccessory auxiliary equipment are water chiller(water cooler or air cooler ),air compressor,dryer for material, blender, grinder,auto loading(optional)
What is after sales service I can get?
Our engineer is available in from 7:00am-11:00pm, Beijing Time
Engineers to South-east countries for on-site service every month, BG,VN,SL,IN,PK,PH,ID,MY,TH,
Technical support agent in Brazil
Engineers to other countries available as demand
You can get 1 person , 2 days per machine on site service for free.
