Products Description

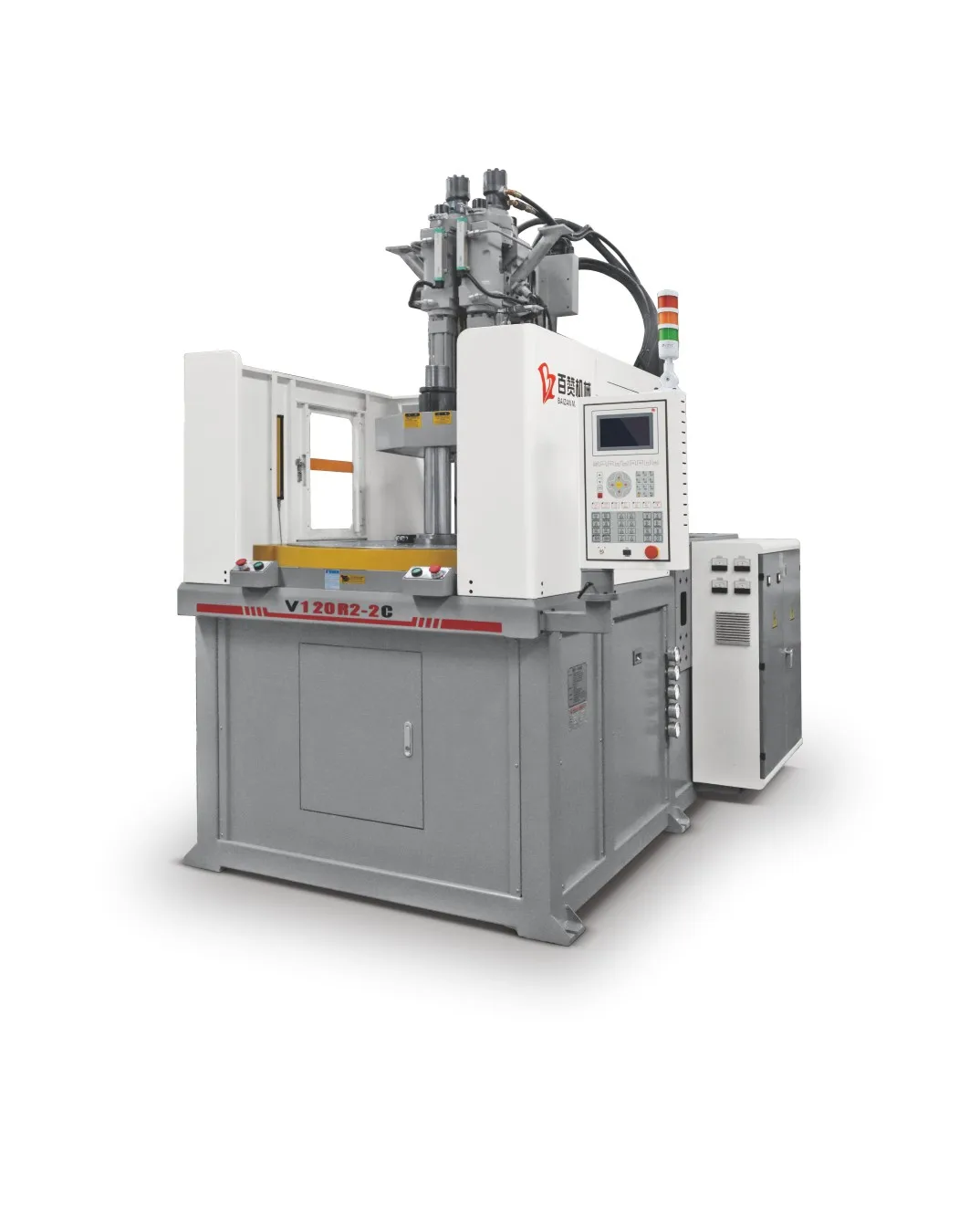

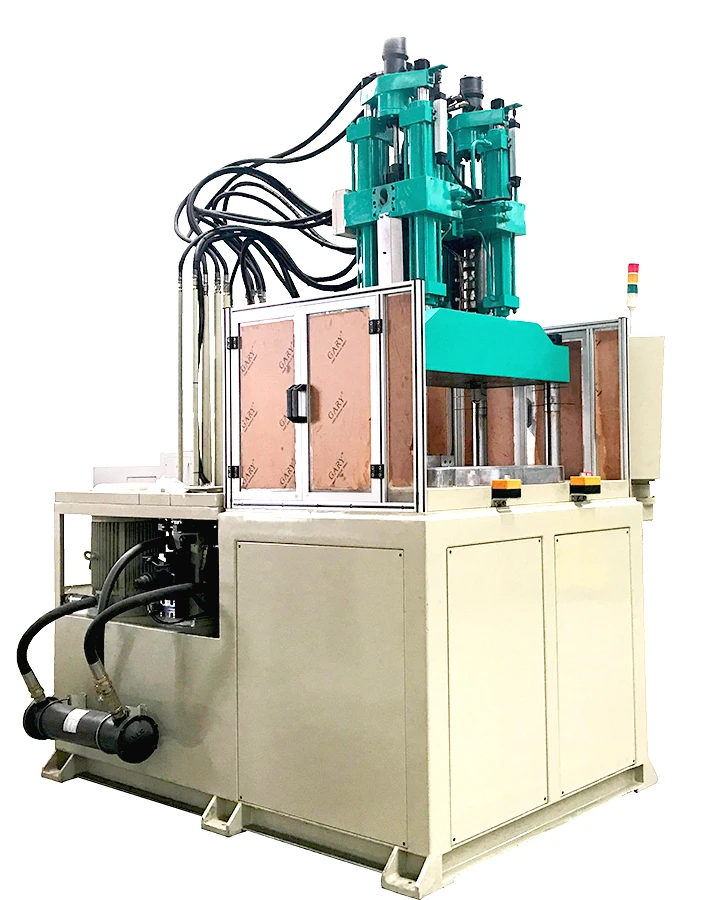

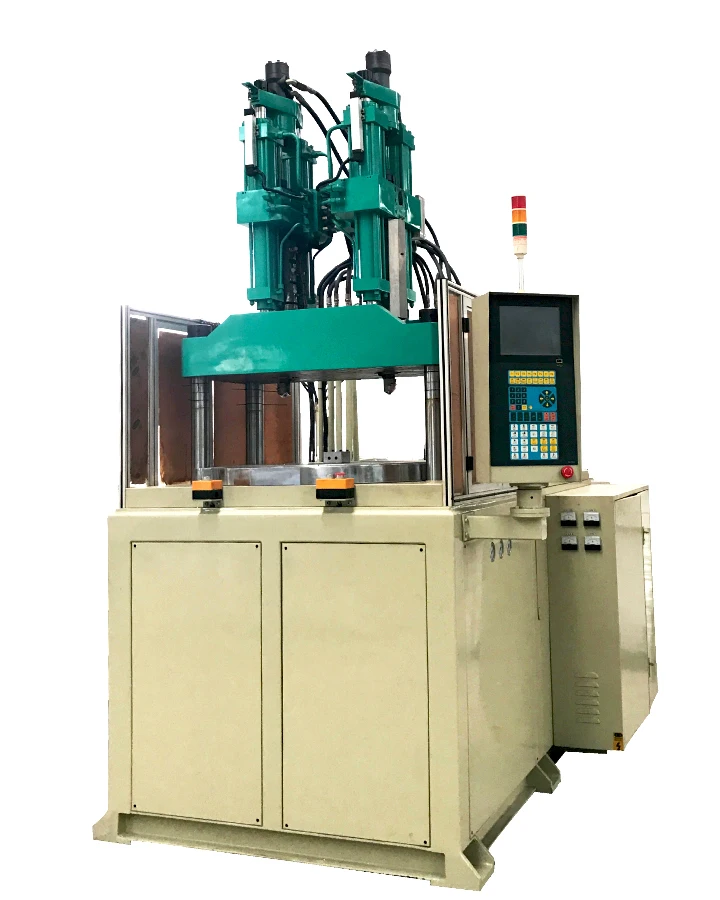

Double Injector Rotary Vertical Plastic Injection Molding
Machine For Rotor


Clamping Force
120T
Plastic Type
Thermoplastic
Machine Type
Vertical Plastic Injection Molding Machine
Screw Diameter
42mm
Screw Stroke
160mm
Machine Dimesions
2790mm*1800mm*2830mm
* Vertical clamping and vertical injecting, suitable for two color or two materials with inserts of the
product molding

* Multi-station disc design, stable rotation, accurate positioning, easy to take and place parts.

Combining Advantages
Combining advantages of hydraulic and electric machines and highlighting high energy savings, fast response, high precision and high efficiency.
*Special for 2 colors 2 materials products.
*2-3 stations,2 independent injection units. *Save 2/3 time Option:2 total independent units available.It can be used as 2 machines for single color/material or for 2 colors/materials products.

Saving Energy
Servo-motor-driven g ear pump and screw regulated by servo controller,closed-loop control of flow and pressure, accurate multi-stage speed and pressure control of injection and clamping and plasticizing

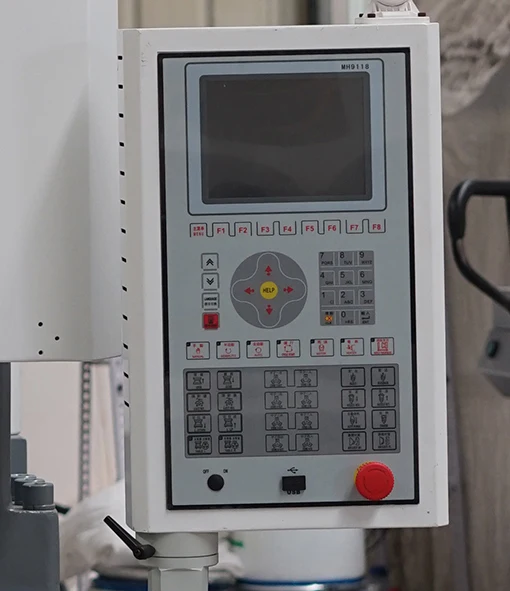

PLC
Electronic parts
Brand: MIRLE
Brand: Fuji/Schineider/Fotec
Original: CHINA
Original: Japan/France/Taiwan,China
Features: High Precise Control,High sensitive response ,TFT Color display,Language:Portugal,English,Chinese
Features: Stable High sensitive
Servo Motor

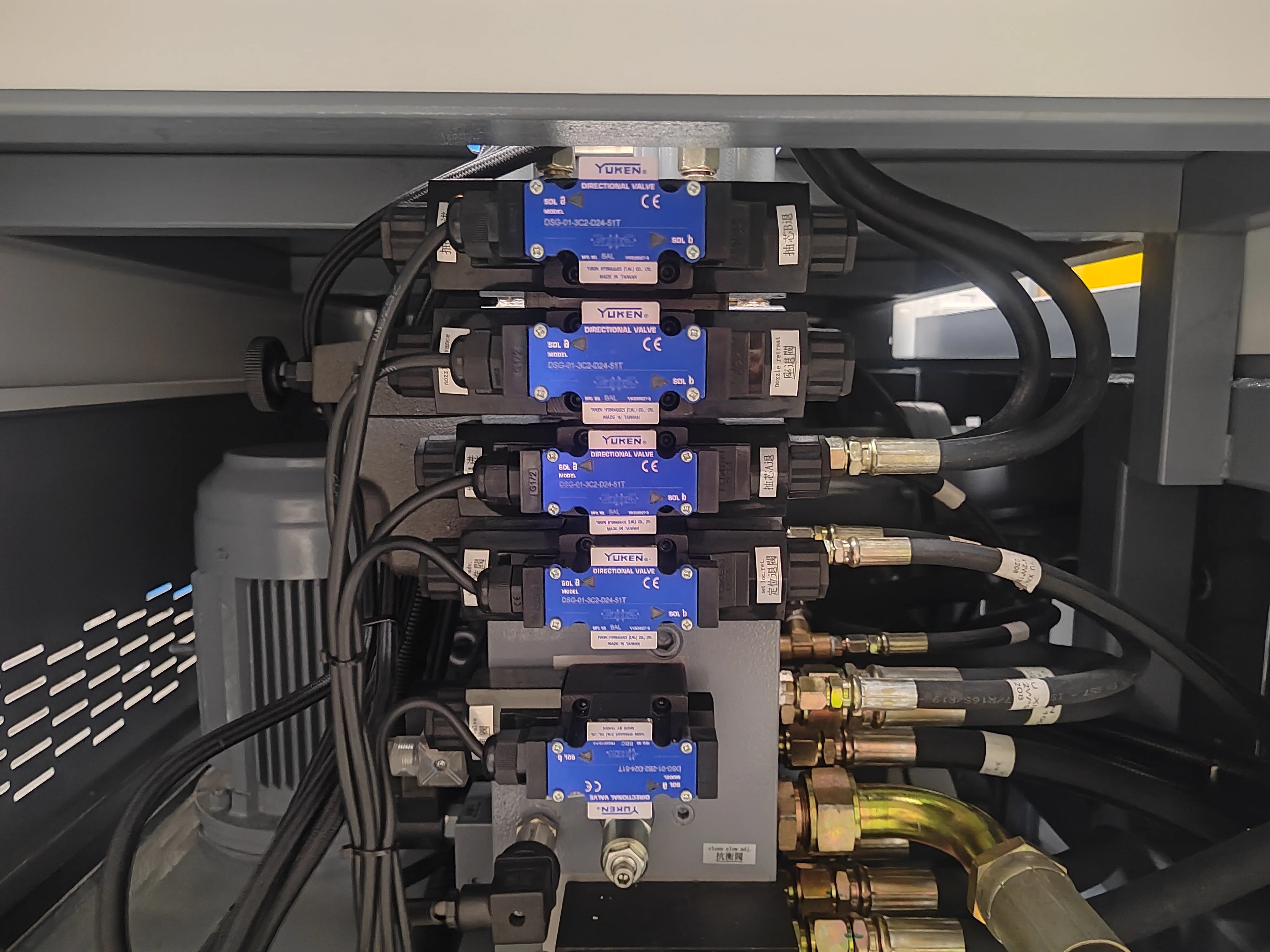

Hydraulic Valve
Brand: INOVANCE
Brand: Yuken
Original: China
Original: Japan
Features: Save power by 60% and low noise
Features: High sensitive response
Specification

Mold
Unit
HM-V120R2-2C
注射装置
Injection Unit
Screw Diameter
mm
25
25
Screw Stroke
mm
140
140
Theoretical Shot Volume
cm³
68
68
Injection Molding Quality
g
63
63
oz
2.2
2.2
Max.Injection Pressure
Mpa(kgf/cm²)
266(2721)
266(2721)
Injection Rate
cm³/s
58
48
Screw Speed
r.p.m
0-340
0-290

合模装置
Mold Clamping Unit
Clamping Force
KN(tf)
1172(120)
Clamping Stork
mm
260
Min.Mold Thickness
mm
280(380)
Max.Open Distance
mm
540(640)
Space Between Columns
mm
\
Max.Size of Mold
mm
450*400
Distance of rotary table
mm
1170
Distance of Product Out of  Mold
mm
70
Ejector Force
KN(tf)
21.5(2.2)
QTY of Ejector
pcs
3
其他
General
System Pressure
Mpa(kgf/cm²)
13.7(140)
Motor Power
kw(HP)
5.5+5.5
Electric Power
kw
4+4
Temperature Stage

4*2
Mechanine Dimesions
mm
2790*1800*2830
Machine Weight
tf
7.1

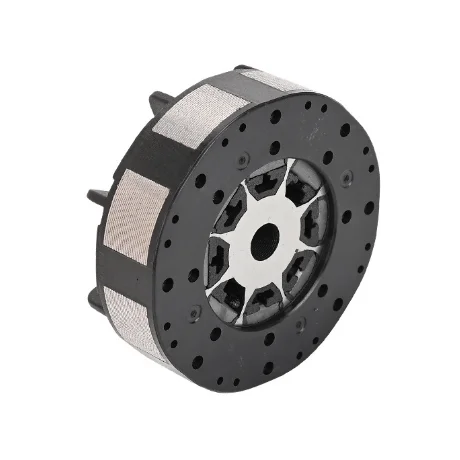

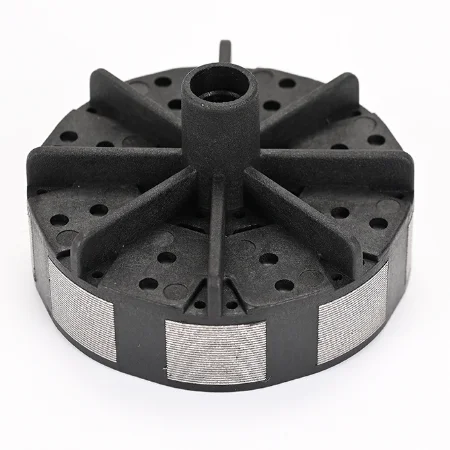

Applications
Certifications
Ente Certificazione Macchine
Hommar is a professional manufacturer of vertical injection molding machine since 1998.

Always focus on upper-class quality machines .

Developing at least 15 new machines every year.

CE certification
Our Factory
Exhibition
Product packaging
FAQ
1. What's your special service?
We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
2.Can the machine customized for my products?
We have special machines for some special products. also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
3.What is the delivery time of the machine?
Actually, the delivery time of the machines is depended on the machine options.Normally, the delivery time of standard machine could be with in 25-30 days.
4. What is the warranty of the machine ?
The whole machine’s warranty period is 12 months.
5.Mold trial will be available in Our factory ?
Yes, Customer can send the mold to our factory and test.
6. Can I trust you?
We're Alibaba verified supplier & Alibaba Trade Assurance Supplier. We manufactured injection machine for about 20 years and have many clients all of the world.
